This 209kWh BESS cabinet is the value variant of our 100kVA platform, trading 6kWh of storage for a sharper price. The 209kWh BESS uses the same 100kW hybrid inverter and LFP cabinet platform as our flagship unit.
| Model | MS-100kw+209kwh BESS |
|---|---|
| Type | Off-Grid / Hybrid BESS Solar System |
| Rated Power | 100kW |
| Battery Storage | 209kWh |
| Output Voltage | 110V~800V |
| MOQ | 1 set — OEM & ODM accepted |
| Certificates | CE / RoHS · IEC 62619 · UN38.3 · ISO 9001 |
| Payment Terms | T/T — 30% deposit, 70% before shipment (50/20 for long-term partners) |
| Lead Time | 3–30 days depending on system scale |
| Warranty | 25-y solar panels · 10-y inverter · 5–10-y LFP battery · 2-y integration |
All systems are quoted by configuration and destination port. Share your load profile and location, and we will return a firm CIF quotation within 24 hours.

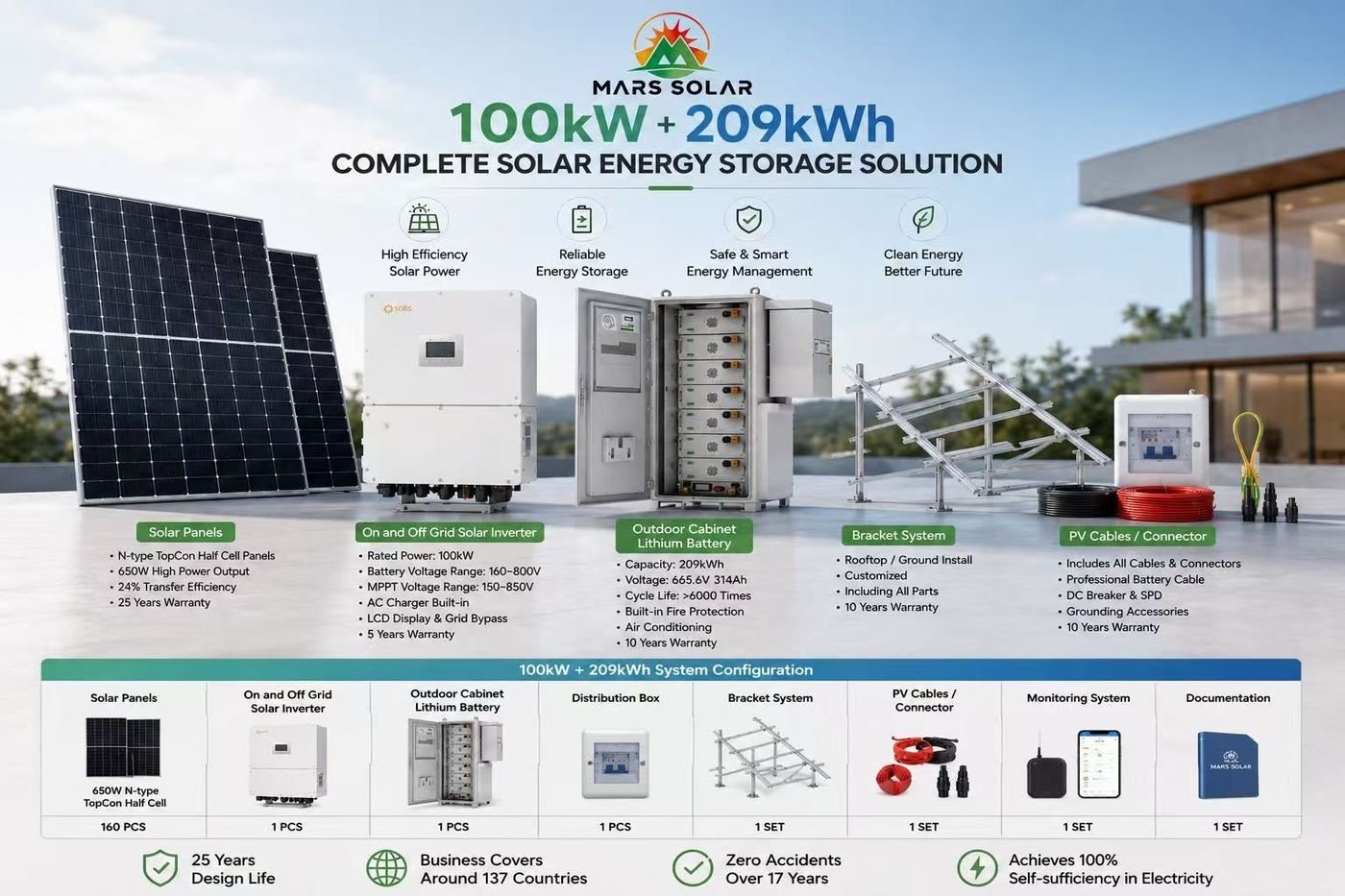

| Component | Details |
|---|---|
| Solar Panels | N-type TOPCon half-cell modules (~625W class), 23% transfer efficiency, 25-year linear power warranty |
| Hybrid Inverter | 100kW PCS with built-in MPPT, AC grid charger, 3-phase output, anti-islanding protection |
| Energy Storage Cabinet | 209kWh LFP battery with built-in BMS & EMS, air cooling, 6,000+ cycles |
| Mounting System | Rooftop or ground-mount structures, customized to site survey |
| Cables & Connectors | Full PV cable set, MC4 connectors, battery cables, DC breakers & SPD |
Commercial buildings and light industry where budget discipline matters and storage can be expanded later.
What moves the 209kWh BESS price? Module pricing first: tier-1 modules currently run $0.28–0.48 per watt FOB. Inverter class, mounting type and cable runs come next, and where batteries are included, storage typically adds 35–50% of the total system cost. Sea freight and clearing usually add 20–35% over FOB to reach West African or Southeast Asian ports.
| Cost factor | Typical figure (2026) |
|---|---|
| Solar modules | $0.28–0.48 per watt FOB, tier-1 supply |
| Sea freight & landed cost | Typically +20–35% over FOB to West Africa / Southeast Asia ports |
| Storage share | 35–50% of total system cost where batteries are included |
| Payback | 3–5 years against grid power; under 18 months when replacing diesel |
For a verified reference point: a complete 100kW + 215kWh BESS container quotes CIF $88,000–115,000 to ports such as Lagos or Manila. Every Mars Solar quote is factory-direct: FOB from our Foshan plant or CIF to your port, with the full certification dossier included.
For country-level landed-cost math, read the BESS import and payback guide for Nigeria, and see the 100kW + 215kWh wastewater plant project in Sudan for how the same hardware performs in the field. The IEA solar PV market track is a good neutral reference for global module price direction.
Send us your load profile and location — we return a firm CIF quotation within 24 hours.
